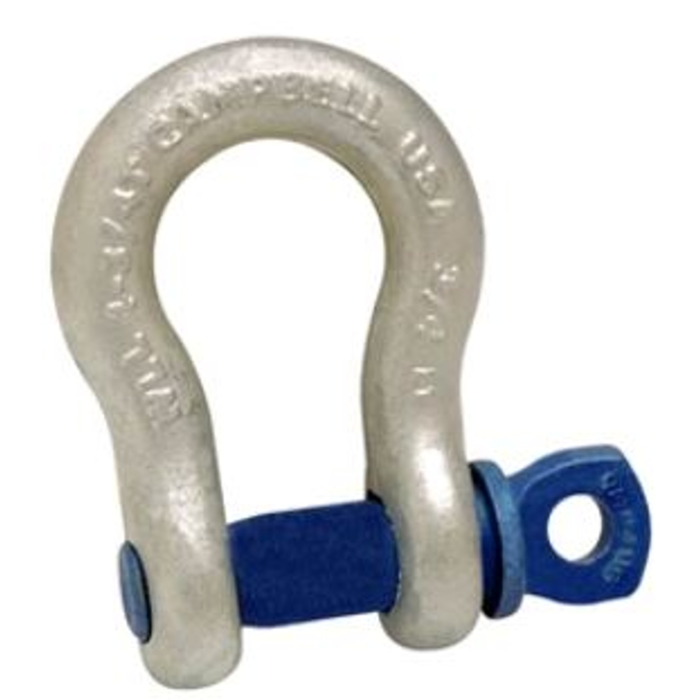

Shackle 1-1/2in 17T Anchor Screw Pin 5412435
SKU
5362
Product Details
Catalog No. 5412435
UPC Code 020418076435
Shackle Type Screw Pin
Size 1 1/2 in.
Standard Material Drop-Forged Carbon Steel
Working Load Limit 17 Ton
Finish Galvanized
Weight Each 16 lbs.
Product Features:
•*****Meets or exceeds all requirements of ASME B30.26*****
•Screw pin anchor shackle
•Standard shackle material: Drop-forged carbon steel
•Standard finish: Galvanized to ASTM A-153 specification
•Working Load Limit permanently shown on every shackle
•Design factor: 6 to 1
•Meets the design requirements of the following specification:
•Federal Specification RR-C-271, Type IVA, Grade A, Class 2
•Order unit is "Each"
Product Description
Specifications
| Brand | CAMPBELL |
|---|---|
| Individual Item Weight | 20.00 LBS |
| Manufacturer Name | CAMPBELL |
| Manufacturer Part Number | 5412435 |
Documentation
No documents available
