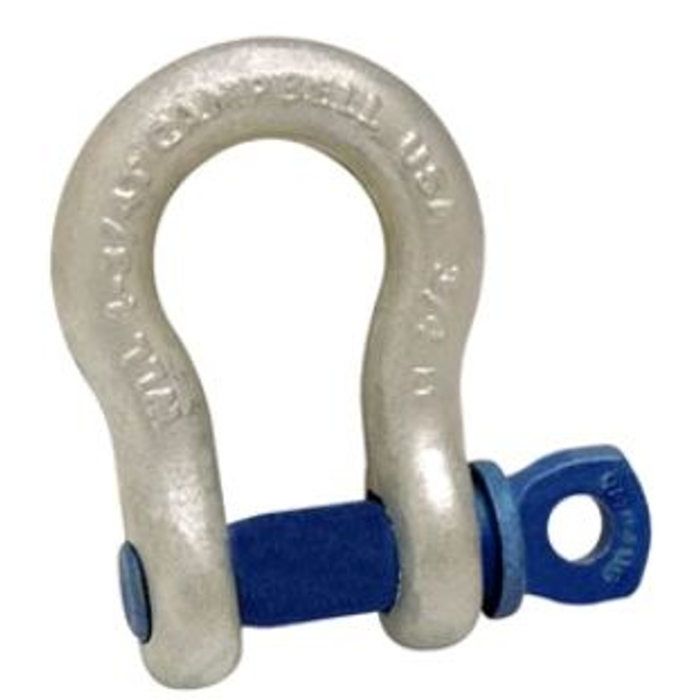

Shackle 3/8 1T Anchor Screw Pin 5410635
$11.98
Product Details
Catalog No. 5410635
UPC Code 020418076220
Shackle Type Screw Pin
Size 3/8 in.
Standard Material Drop-Forged Carbon Steel
Working Load Limit 1 Ton
Finish Galvanized
Weight Each .3 lb.
Product Features:
•*****Meets or exceeds all requirements of ASME B30.26*****
•Screw pin anchor shackle
•Standard shackle material: Drop-forged carbon steel
•Standard finish: Galvanized to ASTM A-153 specification
•Working Load Limit permanently shown on every shackle
•Design factor: 6 to 1
•Meets the design requirements of the following specification:
•Federal Specification RR-C-271, Type IVA, Grade A, Class 2
•Order unit is "Each"
Product Description
Specifications
| Brand | CAMPBELL |
|---|---|
| Individual Item Weight | 3.00 LBS |
| Manufacturer Name | CAMPBELL |
| Manufacturer Part Number | 5410635 |
| UPC | 400000007441 |
