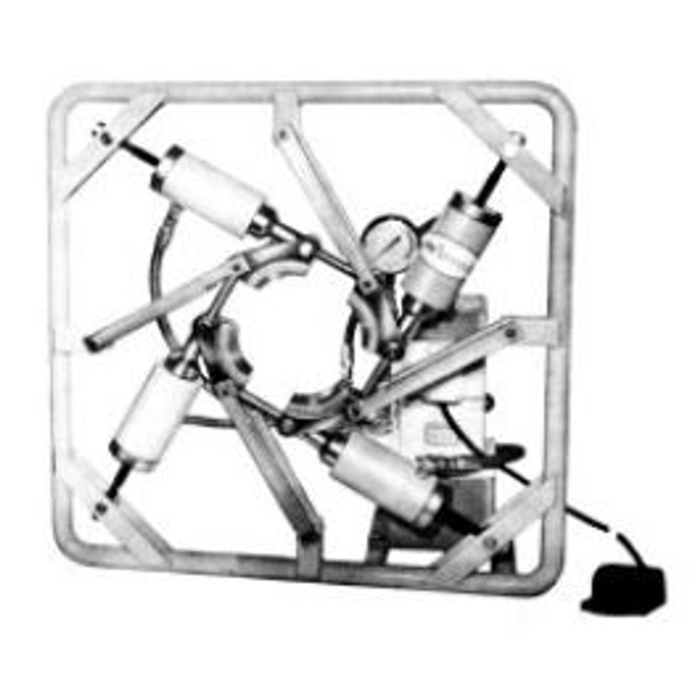

FT1222-1-4 Aeroquip Segment Fitting Assembly Machine

Aeroquip FT1222-1-4 Hose Assembly Machine For Segmented Fittings The FT1222 Assembly Machine provides fast, easy assembly of 4-segmented socket type fittings. The unique design of the FT1222 assembly machine develops over 10 tons of force on each socket segment while exerting only minor forces on the frame. The light weight, durablity of the machine can be bench mounted or transported, making it ideal for segmented socket fitting assembly operations using Aeroquip hose styles 150901 and 2662 in sizes -40, -48, and -64. Components Sturdy tubular steel frame Single acting spring return cylinders Pressure guage Pump Electric foot switch Locating pins Adapter pads See the FT1212-1-4 Assembly machine for 3-segment fittings.
