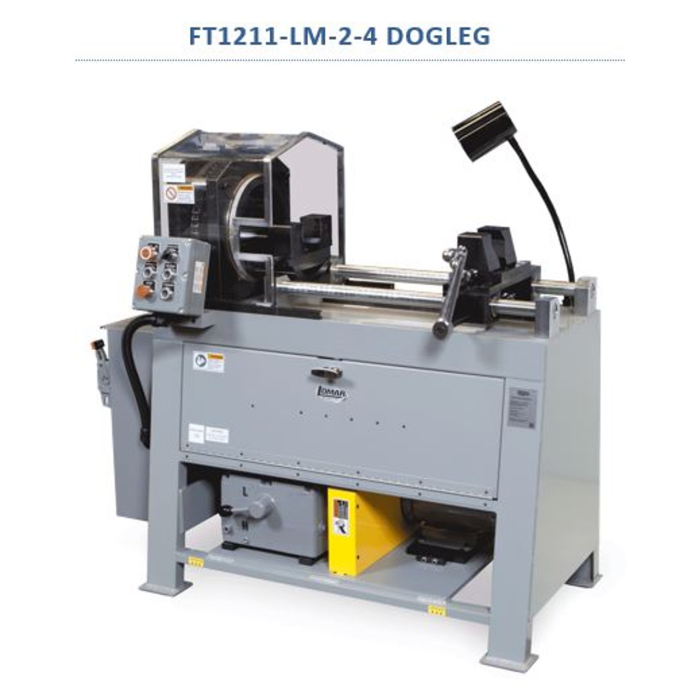

FT1211 Enhanced Dogleg Assembly Machine
Manufactured for Eaton Aeroquip by Lomar Machine & Tool.
New Enhanced Design with 2-speed Transmission.
Part number FT1211-LM-2-4.
The FT1211 Dogleg Assembly Machine is designed to assemble most Aeroquip industrial and marine screw together reusable fittings. It will accomodate straight and elbow fittings including dogleg fittings ranging from 1/4 inch to 3 inch. The FT1211 Enhanced version is new in 2016 and includes the following:
Electrical Requirement 230/460 Volt, 3-Phase power
Chain driven, (same as legacy FT1211-2-4 Machine)
Safety interlock switch on large guard assembly
2-speed transmission with detente neutral position
Output speeds at the spindle
1st gear RPM output to be 14.9 with a minimum of 540 foot pounds of torque available at spindle
2nd gear TPM output to be 29.8 with a minimum of 265 foot pounds of torque available at spindle
Baldor 2.0 HP/1725 RPM motor with electric brake
(2) FT1211-200-1 Flat inserts
(2) FT1211-100-1 Large Insert
(1) FT1211-150-1 Large cutaway insert
(2) FT1211-100-2 Small insert at full length
(2) FT1211-150-2 Small cutaway insert
Operator Manual
Spindle thru-hole: 9.75”
Compatible with existing tools designed for use with FT1028 & FT1211-2-4 machines
Available Options Include:
FT1211-2-1 Potchuck
FT1211-2-2 Overriding Head & Brake Assembly
FT1211-2-3 Face Plate (for captive flange fittings)
Specifications
Specifications
Brand
LOMAR
Manufacturer Name
LOMAR
Manufacturer Part Number
FT1211-LM-2-4
Package/Shipping Weight
1,000.00 LBS
