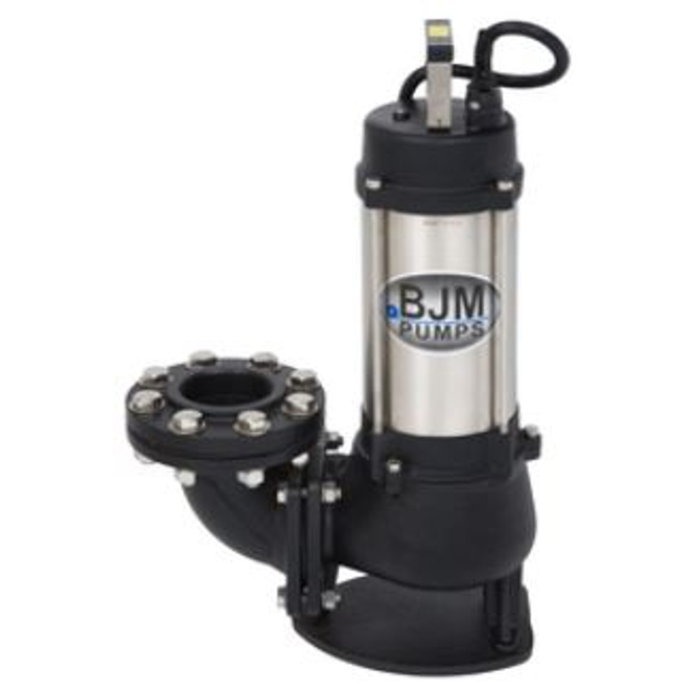

BJM Trash Pump 2HP SV1500C
MAX. FLOW: GPM 171
MAX. HEAD: ft 29'
PUMP TYPE Non Clog Vortex
DISCHARGE SIZE 3" NPT-F
MAX. SUBMERGED DEPTH 65'
MIN. SUBMERGED DEPTH 14.5"
SHIPPING WEIGHT:lbs 104
This item normally ships from the factory. Please Call Greenshields at 425-225-3768 to confirm shipping method and shipping cost.
CONSTRUCTION/MATERIAL DATA
MOTOR CASING 304SS
PUMP VOLUTE Cast Iron
LIP SEALS & O-RINGS Buna - N
ROTOR SHAFT 304 SS
EXTERNAL HARDWARE 304 SS
QTY. OIL IN SEAL CHAMBER 9.3 U.S. FL .OZ.
QTY. OIL IN MOTOR STATOR No oil in motor stator (After ser# 43644) 13.5 U.S. FL. OZ. (Before ser# 43644)
ELECTRICAL/MOTOR DATA
MOTOR RATING: HP 2
MOTOR RPM 3450
MOTOR INSULATION CLASS F
MOTOR SERVICE FACTOR 1.1
VOLTAGE 230, 1ph-60 Hz
CURRENT F.L.A. 14
MOTOR PROTECTION Thermal & Amp Overload
POWER CORD: GAGE; LENGTH A.W.G. 14/3, 33' STOW
MAXIMUM LIQUID TEMPERATURE 104° F
Seal Minder® Optional
Specifications
Specifications
Brand
BJM
Manufacturer Name
BJM
Manufacturer Part Number
SV1500C
Package/Shipping Weight
110.00 LBS
Documentation
No documents available
