Submersible Pump Trash 1 hp 3in 115/230 BJM SV750C 201532
Product Description
More Information

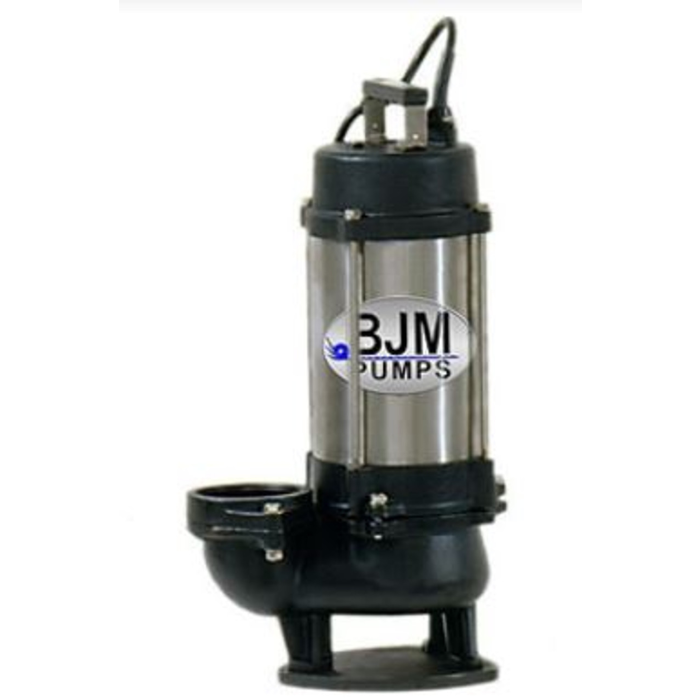

BJM SV750-115 Vortex Trash 3", Submersible Pump 201532
The SV-Series pumps are equipped with Vortex impellers, undoubtedly the best non-clog impellers ever invented for the handling of mud, raw sewage, viscious liquids, rags, wood chips and other solids. They pass solids of up to 90% of pump outlet diameter.
Recessed vortex impeller pumps for passing large solids found in sewage and industrial waste.
SV pumps are designed to pass mud, raw sewage, leaves, rags, wood chips and other solids without clogging.
Constructed with a cast iron volute and fully recessed impeller for pumping solids without clogging.
Rugged construction (no breakable plastic component) and light weight for portability.
Features and benefits •Lip Seal and double mechanical seals.
Lower seal is silicon carbide/silicon carbide and upper seal is carbon/ceramic.
Built in high temperature automatic overload switch and class F motor insulation protects against motor failure due to overheating.
1 HP, 115 Volts, single phase, 14 Full Load Amp
Max Solids 2"
General data
MAX. FLOW: GPM 100 gpm
MAX. HEAD: ft 31 ft
PUMP TYPE Elect.Submersible, Non-Clog Vortex
DISCHARGE CONNECTION 3" NPT-M
SHIPPING WEIGHT:lbs 80 lbs
MECHANICAL SEAL UPPER Crb / Cer
MECHANICAL SEAL LOWER Sic / Sic
MOTOR CASING 304 SS
PUMP VOLUTE Cast Iron
IMPELLER- MULTI VANE Cast Iron
LIPSEAL & O-RINGS Buna-N
ROTOR SHAFT 304 SS
EXTERNAL HARDWARE 304 SS
QTY. OIL IN SEAL CHAMBER 9.3 U.S. fl. oz.
Specifications
Specifications
Brand
BJM
Manufacturer Name
BJM
Manufacturer Part Number
SV750C
Package/Shipping Weight
80.00 LBS
UPC
400000026152
