Product Details
Catalog No. 5392435
UPC Code 020418075681
Shackle Type Bolt Type
Size 1 1/2 in.
Standard Material Drop-Forged Carbon Steel
Working Load Limit 17 Ton
Finish Galvanized
Weight Each 16 lbs.
Product Features:
•*****Meets or exceeds all requirements of ASME B30.26*****

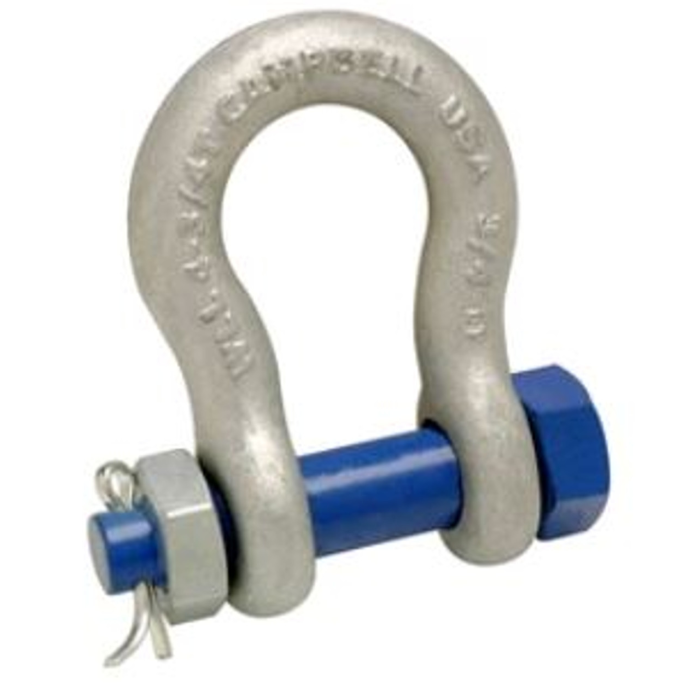

•Safety anchor shackle
•Standard shackle material: Drop-forged carbon steel
•Standard finish: Galvanized to ASTM A-153 specification
•Working Load Limit permanently shown on every shackle
•Design factor: 6 to 1
•Safety meets the design requirements of the following specification:
•Federal Specification RR-C-271, Type IVB, Grade A, Class 3
•Order unit is "Each"
Specifications
Specifications
Brand
CAMPBELL
Manufacturer Name
CAMPBELL
Manufacturer Part Number
5392435
Package/Shipping Weight
16.00 LBS
UPC
400000046068
