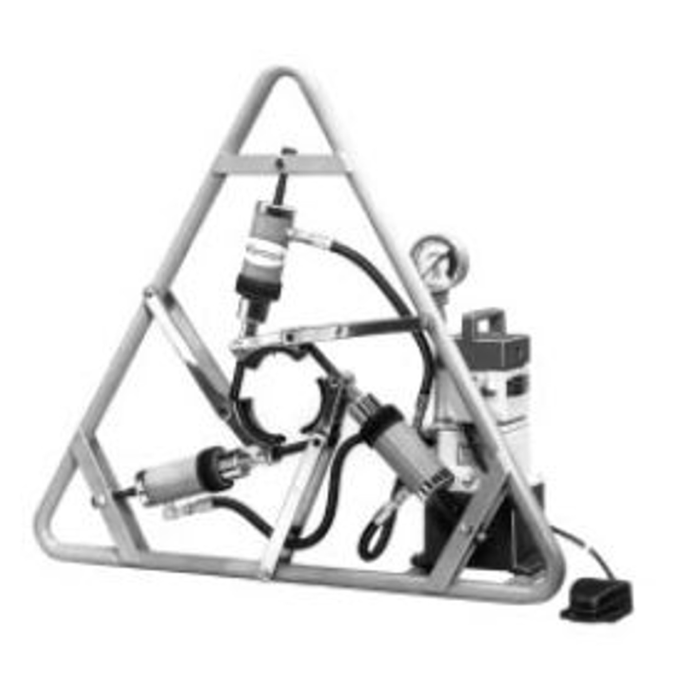

FT1212-2-4 Aeroquip Segment Fitting Assembly Machine

Aeroquip FT1212-1-4 Hose Assembly Machine For Segmented Fittings The FT1212 Segmented Fitting Assembly Machine provides fast, easy assembly of 3-segmented socket type fittings. The FT1212 Assembly machine can be bench mounted or transported, making it ideal for virtually every segmented socketed assembly operation. The unique design of the FT1212 assembly machine develops over 10 tons of force on each socket segment while exerting only minor forces on the frame. The light weight, durablity of the machine can be bench mounted or transported, making it ideal for segmented socket fitting assembly operations using Aerquip hose styles 150901 and 2662 in sizes -40, -48, and -64. Components Sturdy tubular steel frame Single acting spring return cylinders Pressure guage Pump Electric foot switch Locating pins Adapter pads See the FT1222-1-4 Assembly machine for 4-segment fittings.
